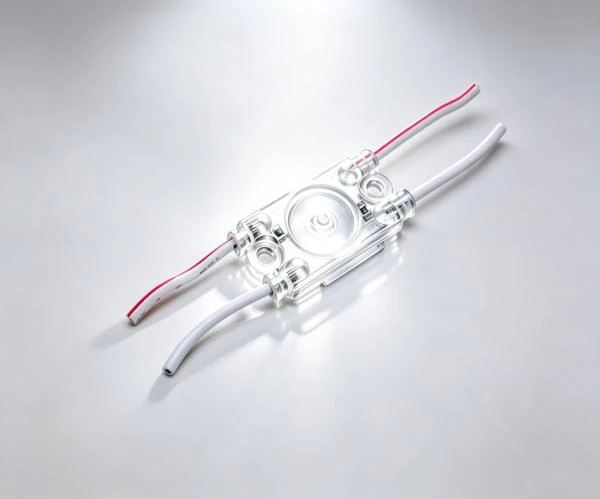

Product Description
Qhov LED Module no yog tsim los rau kev tshaj lij 30-60mm nyias signage thiab lub teeb lub thawv ntawv siv sab nraum zoov. IP67.
Haum rau cov ntawv channel, cov paib tshaj tawm, cov lus qhia thiab cov phiaj xwm kev lag luam.
Lub siab ci ntsa iab LED Sign Module muab cov teeb pom kev zoo ib yam nrog kev siv hluav taws xob tsawg thiab lub neej ua haujlwm ntev.
Qhov zoo tshaj plaws rau cov neeg kos npe, cov tuam txhab tshaj tawm thiab LED module lag luam wholesale tej yaam num.
Daim ntawv thov
Lub Teeb Box Signage
Channel Letter Signs
Retail Store Signage
Kev tshaj tawm
Backlit Signs
Kev lag luam kos npe ua haujlwm
Technical Specification
Qhov Loj: L x W x H: 30 x 16 x 5.9mm
LEDs Ib module: 1led
Ua haujlwm kub: -40℃rau +60 degree
Kev tiv thaiv chav kawm: IP67
Life rating: >50,000 teev
Cia: ntawm<50℃ambient
Fastening: Sticker los yog Ntsia Hlau.
12V
|
Xim kub |
3000K/4000K/7000K |
|
Standard Deviation Ntawm xim txuam |
<3sdcm |
|
Qhov hluav taws xob |
DC 12v / 24v |
|
Lub zog / Module (w) |
0.4W |
|
Lumen / module |
40 lm |
|
Kev ua haujlwm siab (lm / w) |
100 lm/w |
|
Beam Angle |
175 degree |
|
Tsav Tsheb |
Tsis tu ncua voltage transformer |
|
Module / saw |
20 modules |
|
Module max hauv series |
20 modules |
|
Warranty |
7 xyoo |
|
Ntim |
100 modules rau ib lub hnab |
24V
|
Xim kub |
3000K/4000K/7000K |
|
Standard Deviation Ntawm xim txuam |
<3sdcm |
|
Qhov hluav taws xob |
DC 24 V |
|
Lub zog / Module (w) |
0.4W |
|
Lumen / module |
58 lm ua |
|
Kev ua haujlwm siab (lm / w) |
180 lm/w |
|
Beam Angle |
175 degree |
|
Tsav Tsheb |
Tsis tu ncua voltage transformer |
|
Module / saw |
50 modules |
|
Module max hauv series |
50 modules |
|
Warranty |
7 xyoo |
|
Ntim |
100 modules rau ib lub hnab |
Lub Zog Muaj Peev Xwm: 12V DC
|
Watts ntawm lub hwj chim |
LED module kom muaj nuj nqis |
| XLG-75-12 (12V, 60W Fais fab mov) | 120 pcs |
| XLG-100-12 (12V, 96W Fais fab mov) | 192 pcs |
| XLG-150-12 (12V, 150W Fais fab mov) | 300 pcs |
| XLG-200-12 (12V, 192W Fais fab mov) | 384 pcs |
| XLG-320-12 (12V, 216W Fais fab mov) | 4 32 pcs |
| ELG-300-12 (12V, 264W Fais fab mov) | 528 pcs |
| HLG-320H-12 (12V, 264W Fais fab mov) | 528 pcs |
Lub Zog Muaj Peev Xwm: 24V DC
| Watts ntawm lub hwj chim | LED module kom muaj nuj nqis |
| XLG-75-24V (24V, 74W Fais fab mov) | 148 pcs |
| XLG-100-24V (24V, 96W Fais fab mov) | 192 pcs |
| XLG-150-24V (24V, 150W Fais fab mov) | 300 pcs |
| XLG-200-24V (24V, 192W Fais fab mov) | 384 pcs |
| XLG-320-24 (24V, 312W Fais fab mov) | 624 pcs |
| ELG-240-24 (24V, 240W Fais fab mov) | 480 pcs |
Cov Lus Qhia Ceev 12V
|
Qhov tob |
MM ntawm lub ntsej muag tus qauv |
Module rau 1 square meter |
Brightness ntawm nto ntawm acrylic ntawv |
Module ib 'meter' |
|
30 hli |
65mm ua |
225 pcs |
5170 ua |
15 pcs |
|
50 hli |
65mm ua |
225 pcs |
4 650 lux |
15 pcs |
Cov Lus Qhia Ceev 24V
|
Qhov tob |
MM ntawm lub ntsej muag tus qauv |
Module rau 1 square meter |
Brightness ntawm nto ntawm acrylic ntawv |
Module ib 'meter' |
|
30 hli |
65mm ua |
225 pcs |
7755 ua |
15 pcs |
|
50 hli |
65mm ua |
225 pcs |
6975 ua |
15 pcs |
